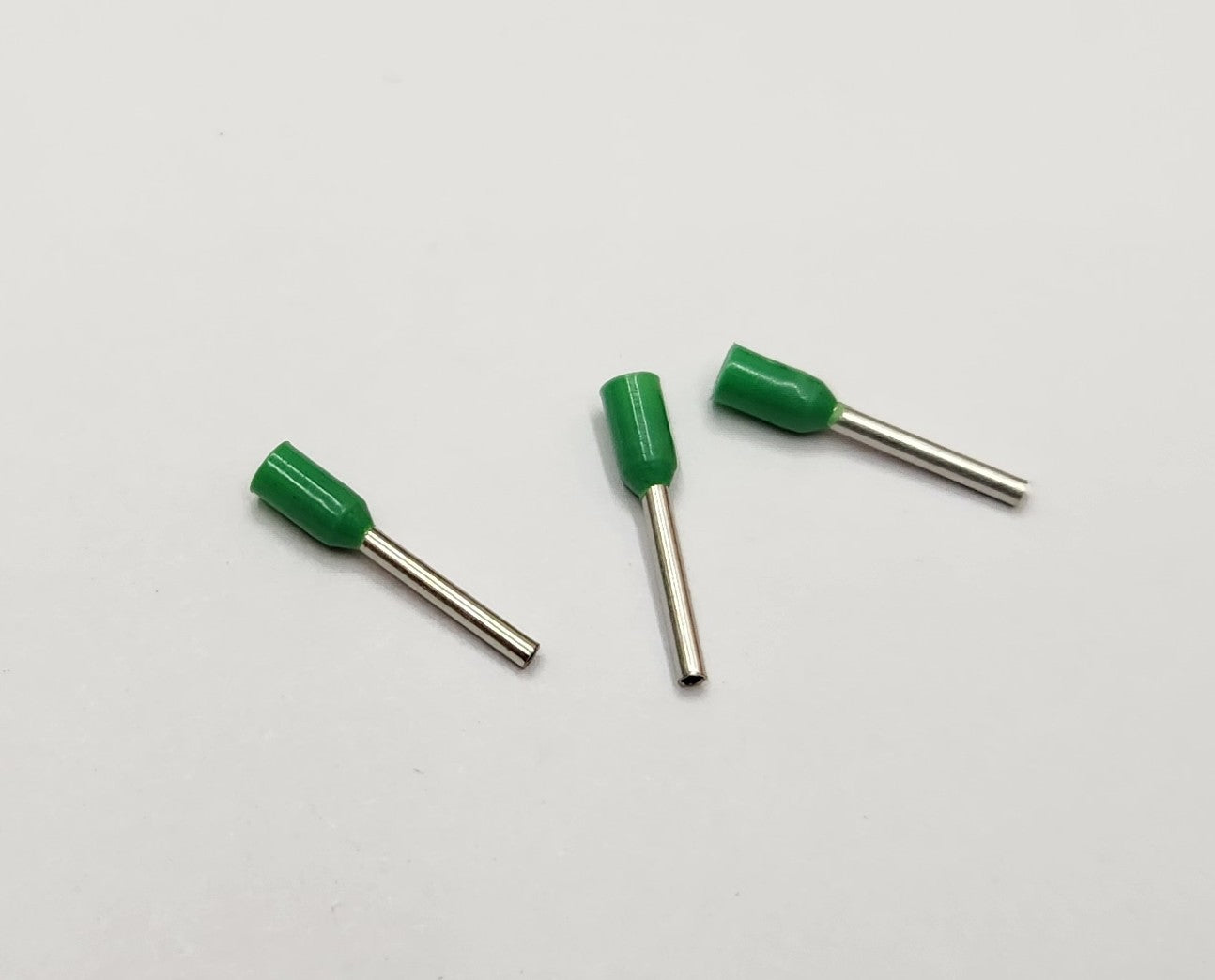

Ferrule Kit 24-26awg - 700pc

Description

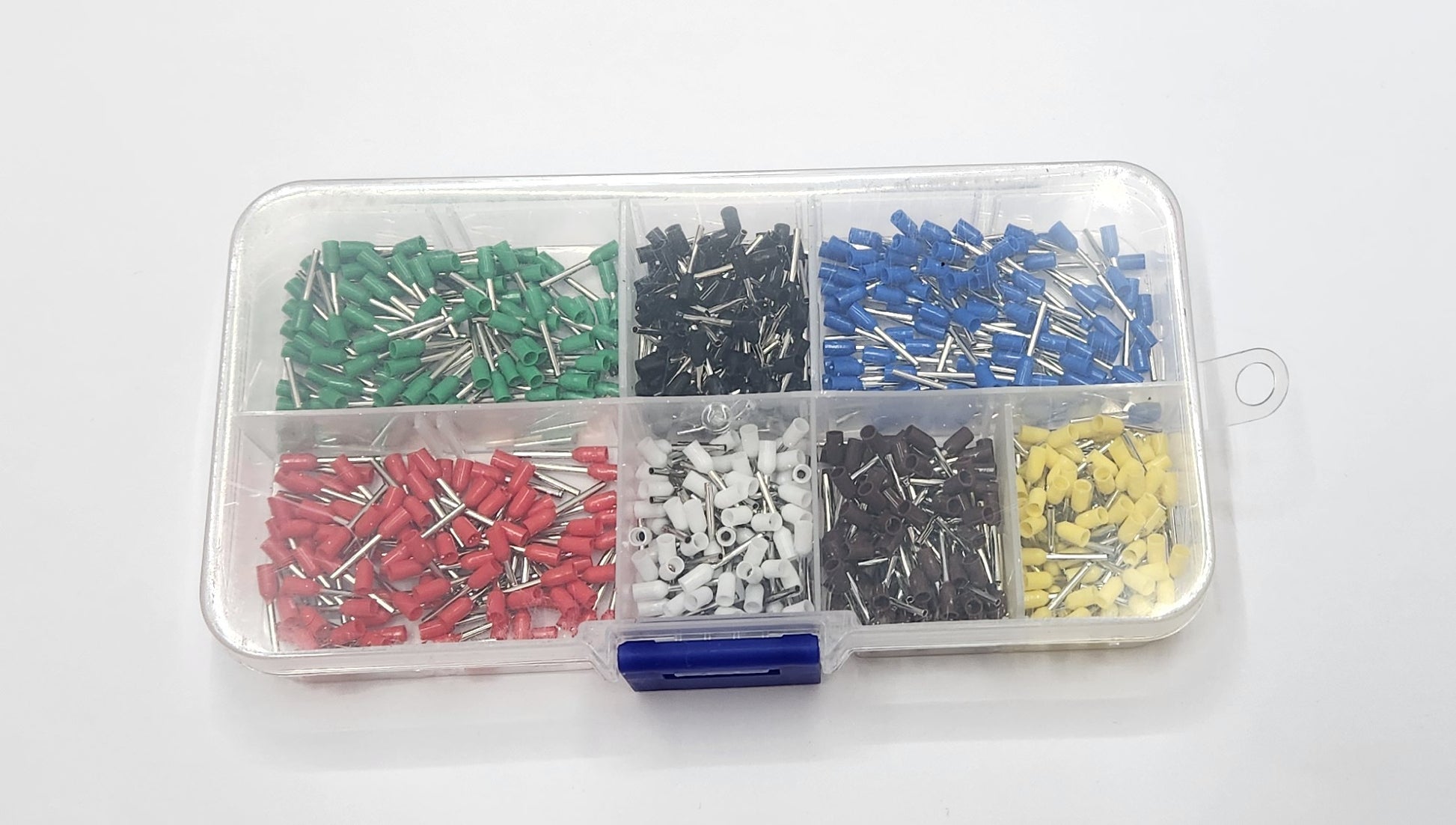

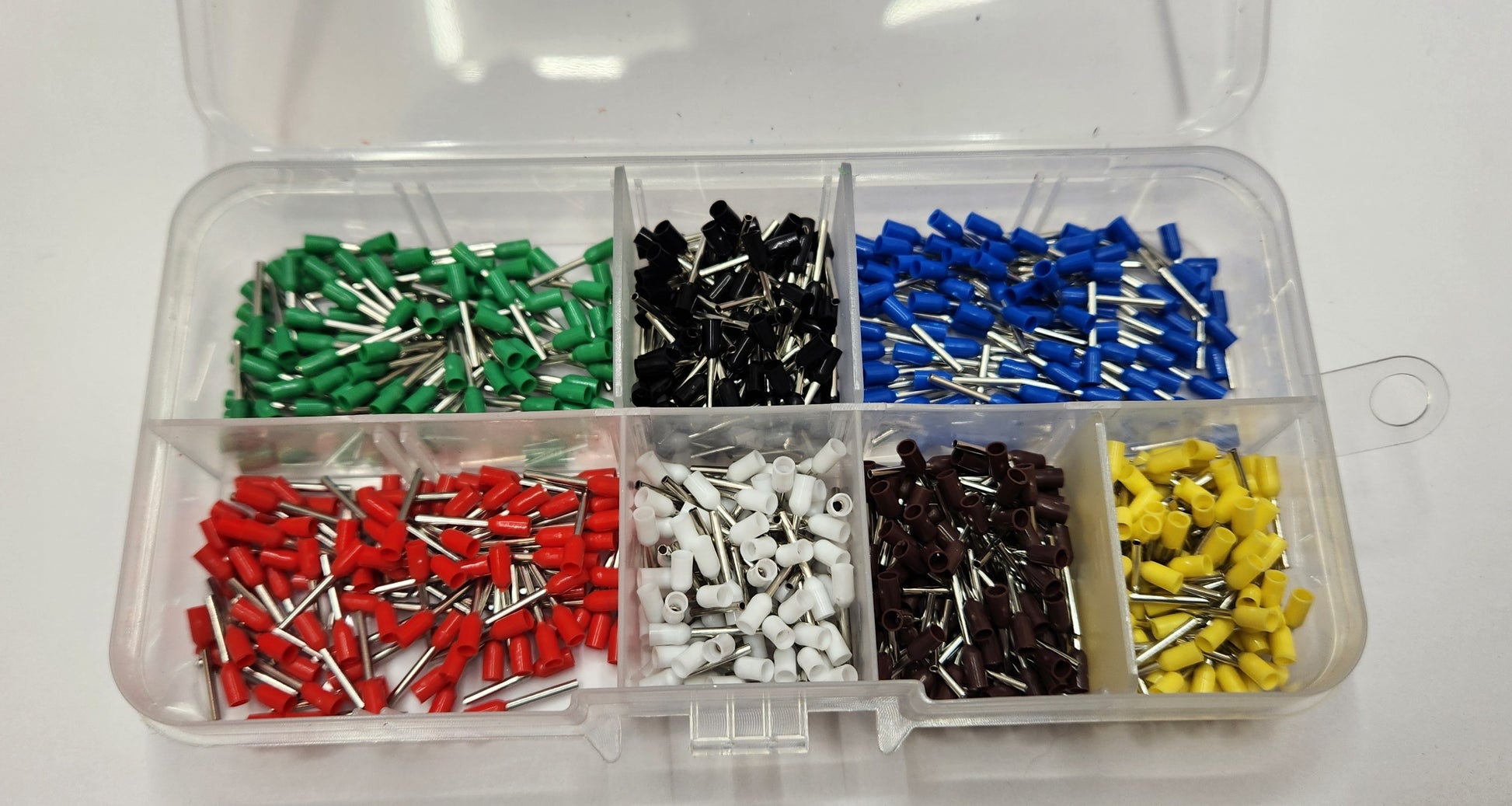

This kit contains 100pc of each of the following colors used for wiring the CS7.2 project:

• Red  (motors and sensors)
• Green (motors)
• Blue (motors and sensors)
• Brown (sensors)
• Yellow (fan)
• Black (motors, sensors, fans)
• White (sensors)

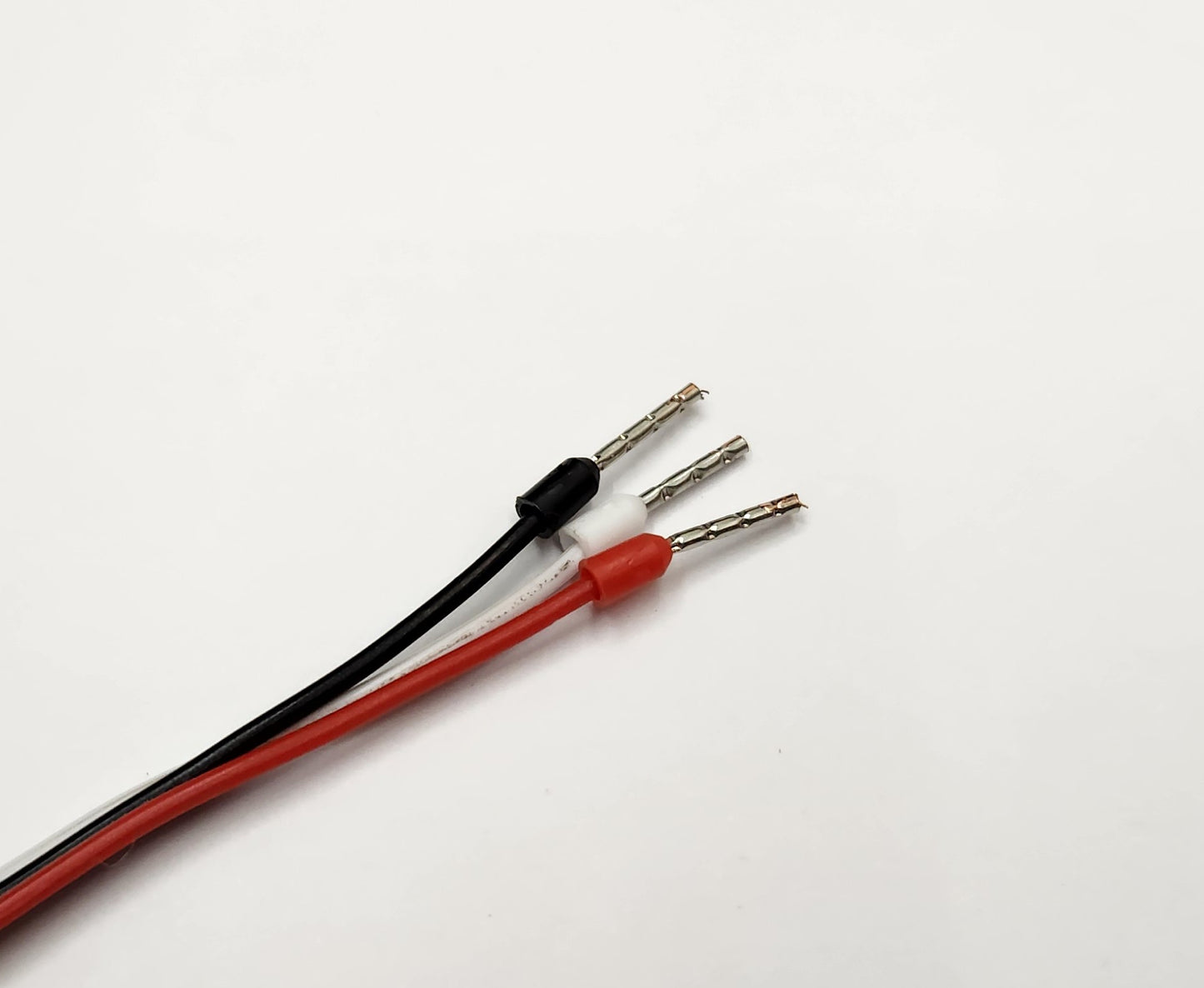

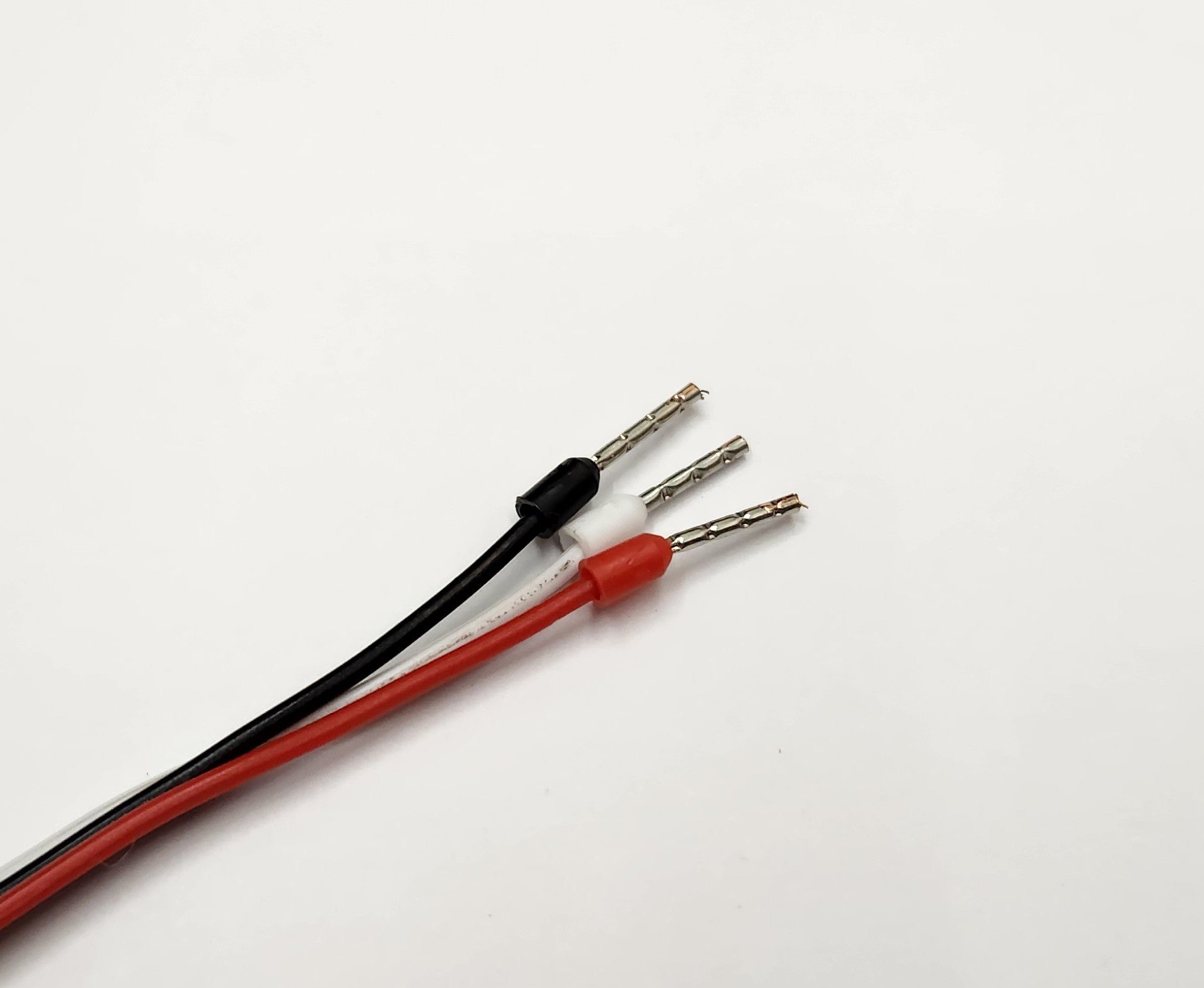

Usage

1. Using wire strippers, remove approx. 8mm of shielding from cable.
2. Twist wire end to keep wires together
3. Slide ferrule over stripped end of wire
4. Place ferrule shaft (not the plastic shield) into crimpers and crimp

Recommendations

Recommend to use crimpers which support 24awg and smaller ferrules such as:

• YG6-6 Crimping Tool
• HSC8 6-4A Crimping Tool
