CS7.2 Complete Build Kit

This kit contains almost all the electronic components and hardware needed to build the CS7.2 AI Case Sorter project except for a 12v DC , 5 Amp Power Supply which you will need to buy separately.

If you buy this kit, you do not need to buy stickers and a light ring which are already included.

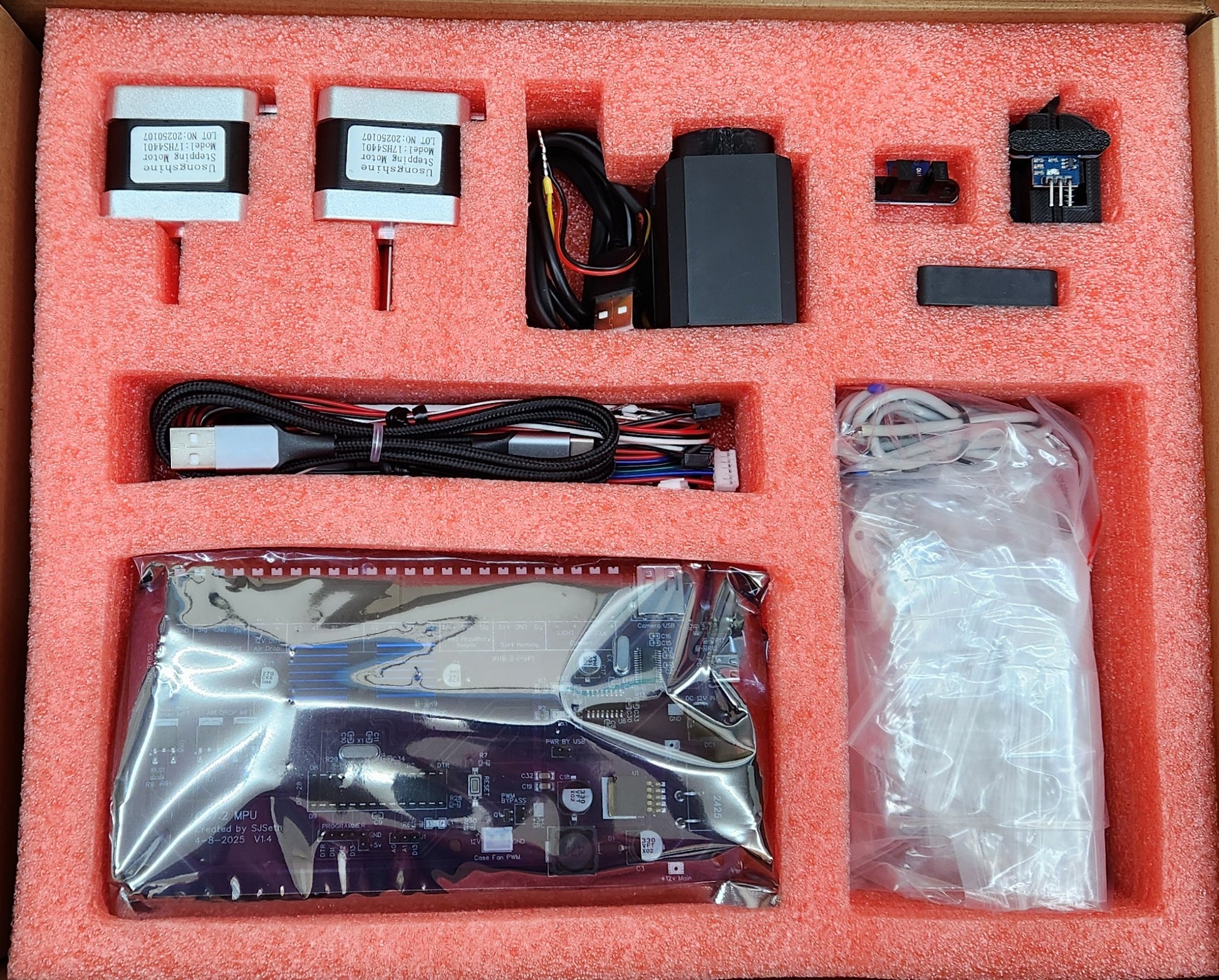

Included in this kit are the following items:

Key Components

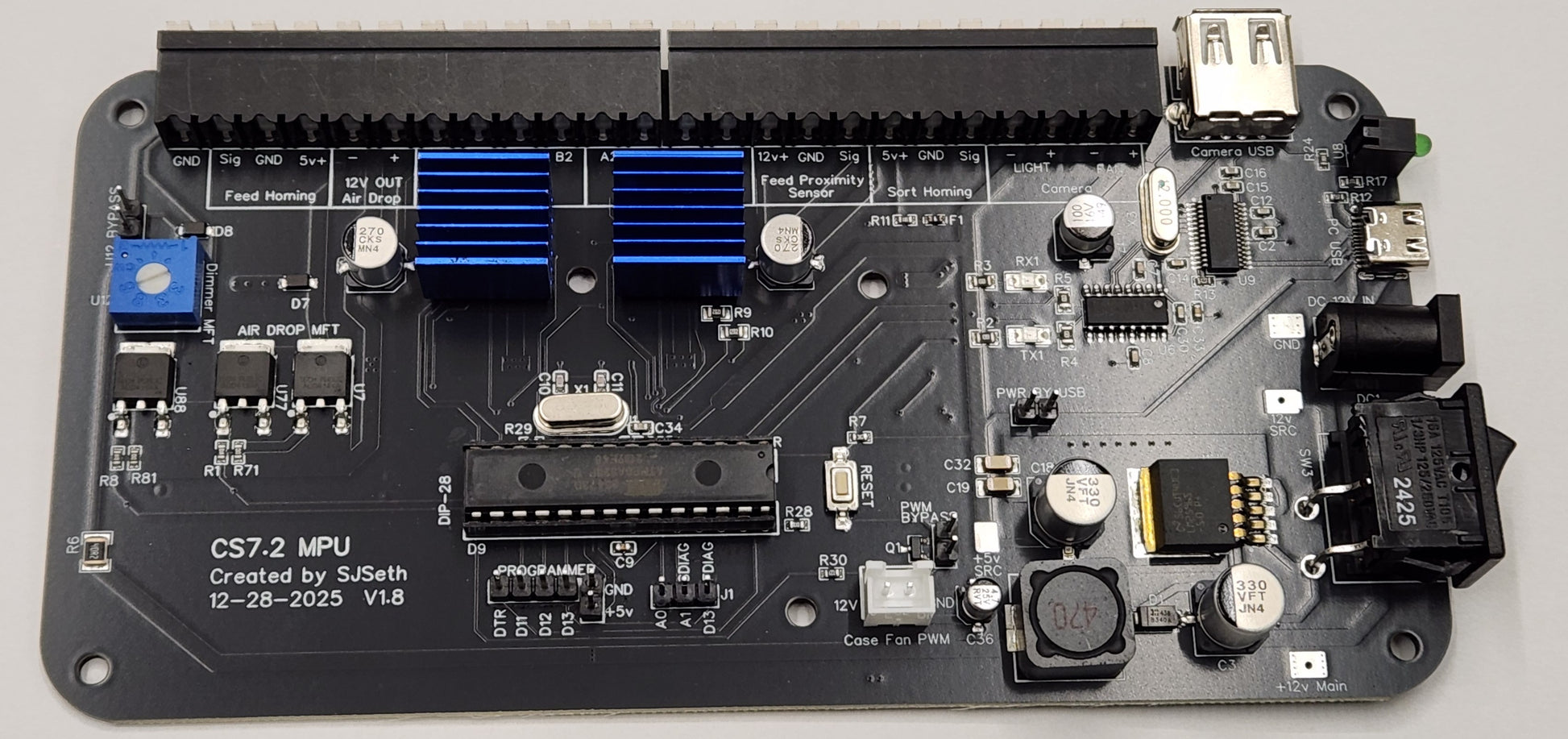

• MPU Controller Main Board  (1)
• MPU Box Label (1)
• PNP-NO Proximity Sensor (LJ8A3-2-Z-BY) (1)
• Pre-Assembled Classifier Homing Sensor (1)
• Optical Sensor (sorter homing) (1)
• Pre-Assembled Camera Module (1)
• 12v Case Fan (1)
• Nema17 Motors (2)
• Motor Cables (2)
• Sensor Cables (2)

Miscellaneous Small Parts

• .5x5x30mm Stainless Steel Tension Spring (2)
• M3x5x4 Heat Set Threaded Insert (2)
• M8x1.0 Heat Set Threaded Insert (2)
• M3x6mmx0.5 Stainless Steel Washer (8)
• M3 Hex Nut (10)
• M3x3 hex Set Screw (8)
• M5 Flange Coupling (2)
• M3 hex key wrench (1)
• 626zz Bearings (4)
• 0.3x4x20mm Compress Spring (2)

Bolts & Screws

Socket Head Cap Screws

• M6x80mm (2)
• M6x30mm (11)
• M5x20mm (2)
• M4x8mm (2)
• M3x18mm (4)
• M3x16mm (2)
• M3x12mm (4)
• M3x8mm (10)

Flat Head Phillips

• M3x6mm (1)
• M3x8mm (1)
• M3x18mm (4)
• M3x14mm (4)

Pan Head Phillips

• M3x14mm (4)
• M3x12mm (8)
• M3x5mm (12)
